Hallway Printer – Configure in Mac OS

Table of Contents

Configuration #

  • First you need to download and install a suitable driver for your Mac OS Version using this link:

https://cloud.uni-ak.ac.at/cloud/index.php/s/qdHootZLp2iFqHT

  • Open your system preferences
  • Click on “Printer & Scanner
  • Add a new printer.
  • Now you need to customize the toolbar (press CTRL – Key + right Mouseclick)
  • Click on “Advanced

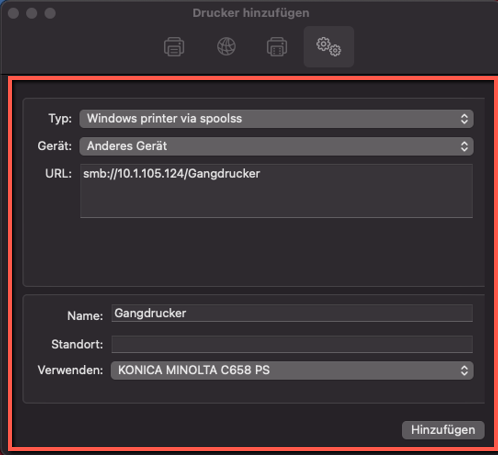

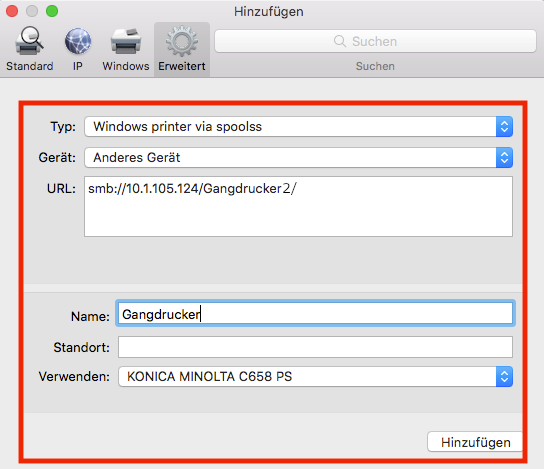

The configuration should look like this:

  • Type: “Windows printer via spoolss
  • Device: “Another Device
  • URL: smb://10.1.105.124/Gangdrucker
  • Name: Gangdrucker
  • Location: Optional
  • Use: “Select Software…“, another window opens
  • Search for “C658” and select the driver.

If you cannot find the driver in the list, please download the driver from this link:

https://cloud.uni-ak.ac.at/cloud/index.php/s/qdHootZLp2iFqHT

  • Finish the configuration with a click on “Add“.
  • In the last step confirm the configuration.
  • The printer was added correctly .

Printing #

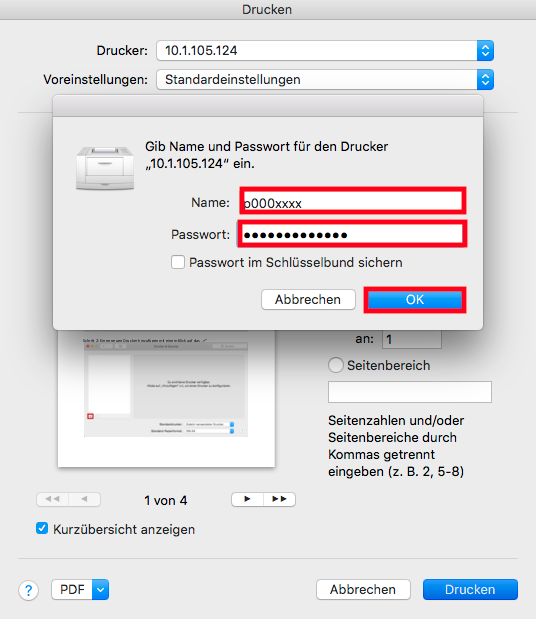

  • The Authentication for printing via a hallway printer is your p-/s-Number and your password.
  • Following this you take your card to a hallway printer and hold it next to the card scanner. The document should be printed.
